Product Description
Features
Small in volume;
Light in weight;
Easy handling.

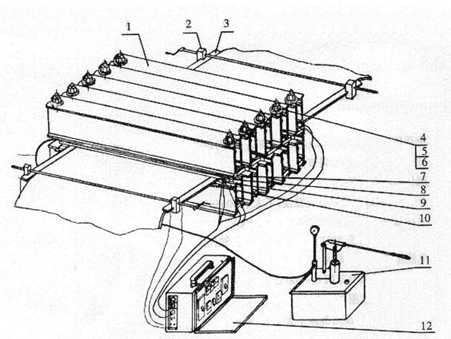

1.Frame
2.Clamping device
3.Padding plate
4.Bolt
5.Nut
6.Washer
7.Heat-isolating plate
8.Upper heating plate
9.Lower heating plate
10.Pressurizing device
11.Pressurizing system
12.Electric heating control box
Technical parameters
Vulcanize pressure: 1.5 Mpa (15 kg / cm2) ;1.8 Mpa (18kg / cm2) also available;
Vulcanize temperature: 145° C (adjustable);
Temperature-rising time: within 40 min;
Temperature difference on the working surface: ±3° C
Adjusting range of temperature from temperature regulator: 0 ~ 200° C
Power voltage: 380V/50 Hz, or 660 V.
Standard Specification:
| Width of conveyor belt (mm) | Power (kW) | Sizes of heat plate L x W (mm) | Assembled size L x W x H (mm) | Weight of heaviest part (kg) |
| 650 | 9.84 | 830 x 820 | 139 x 830 x 580 | 59 |
| 800 | 11.46 | 830 x 980 | 1561 x 830 x 580 | 70 |
| 1000 | 14.4 | 830 x 1205 | 1751 x 830 x 580 | 83 |
| 1200 | 16.02 | 830 x 1415 | 2001 x 830 x 725 | 101 |
| 1400 | 18.96 | 830 x 1640 | 2251 x 830 x 725 | 113 |
| 1600 | 22.2 | 830 x 1850 | 2370 x 830 x 895 | 126 |
| 1800 | 23.94 | 830 x 2055 | 2601 x 830 x 895 | 143 |
| 2000 | 26.76 | 830 x 2290 | 2801 x 830 x 895 | 162 |
